File Management Service Whitepaper

Overview

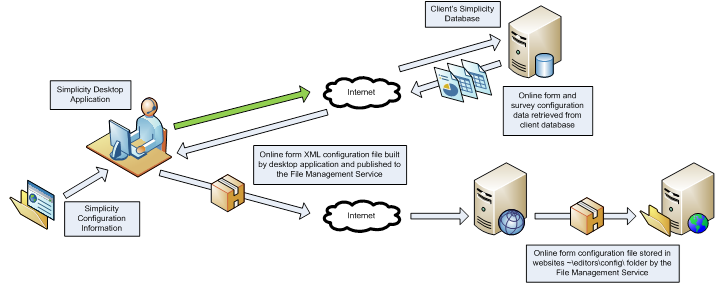

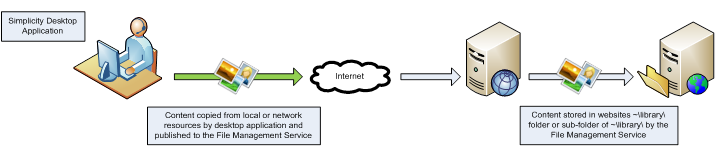

The file management service is used for online form publishing and online library access from the Simplicity desktop application.

Whilst these are the current applications for this service its uses will continue to be extended with the continued development of the Simplicity suite of products.

This web service requires disk reading/writing access to the “~\library\” and the “~\editors\config\” folders for each of the client websites being hosted.

Configuration of this service can be to have one service running which has access to all the client website directories or alternatively be running separate instances of the service under each of the client websites.

This service caters for uploading and downloading of files automatically compressing, transferring and then decompressing the files after the transfer is complete. Presently the online form configuration files are uploaded compressed and the online library files are uploaded/downloaded non-compressed.

The file management service can be run on the same web server or on a separate web server.

Simplicity file management service is accessed via https on port 443 at the following primary url:

https://services.simplicitycrm.com/filemanagement/ioservice.asmx

or file management service via http on port 80 at the following primary url:

http://services.simplicitycrm.com/filemanagement/ioservice.asmx

Accessibility Diagrams

The file management service is accessed via standard web requests from the Simplicity desktop application as illustrated.

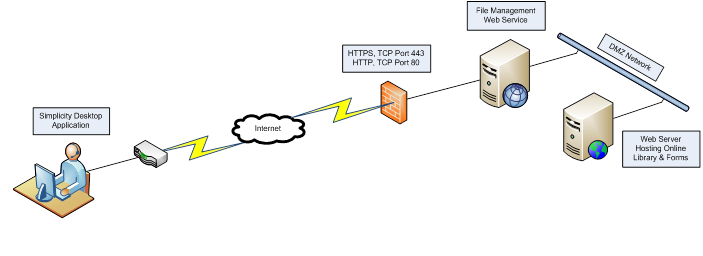

FILE MANAGEMENT SERVICE HOSTED AT SIMPLICITY

This model is the default configuration for the Simplicity file management service.

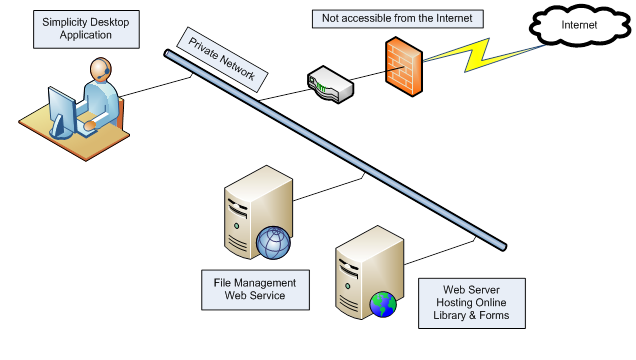

FILE MANAGEMENT SERVICE HOSTED BY CLIENT – INTRANET ACCESS ONLY

This model is available when the Simplicity licensing subscription purchased allows for in-house implementation of Simplicity.

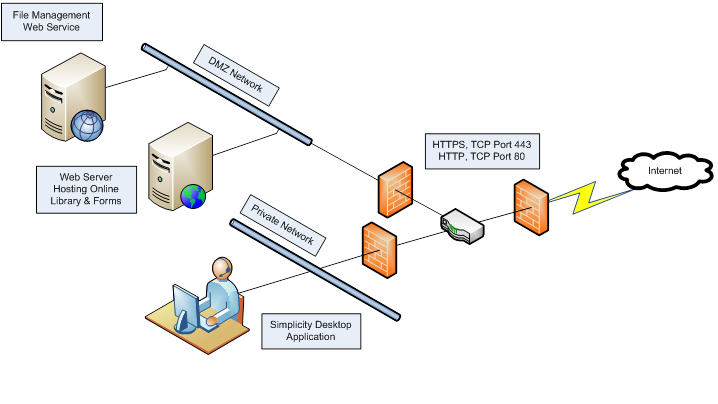

FILE MANAGEMENT SERVICE HOSTED BY CLIENT – INTRANET & INTERNET ACCESS

This model is available when the Simplicity licensing subscription purchased allows for in-house implementation of Simplicity. A NAT or routing entry will need to be created to allow access from the external world to the server. The access required will be for TCP traffic on Ports 80 and/or 443 from the external world IP address of the clients to the internal IP address of the SDLL server.

Web Service Method Definitions

The following methods are supported by this web service.

Web Service Method - BeginGetCompressedFiles

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/BeginGetCompressedFiles"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<CodeSet>string</CodeSet>

<string>string</string>

</filelist>

</BeginGetCompressedFiles>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

</BeginGetCompressedFilesResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<CodeSet>string</CodeSet>

<string>string</string>

</filelist>

</BeginGetCompressedFiles>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

</BeginGetCompressedFilesResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - BeginGetFile

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/BeginGetFile"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<CodeSet>string</CodeSet>

<directory>string</directory>

<filename>string</filename>

</BeginGetFile>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

</BeginGetFileResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<CodeSet>string</CodeSet>

<directory>string</directory>

<filename>string</filename>

</BeginGetFile>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

</BeginGetFileResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - BeginPutCompressedFiles

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/BeginPutCompressedFiles"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<CodeSet>string</CodeSet>

<directory>string</directory>

<filename>string</filename>

</BeginPutCompressedFiles>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

</BeginPutCompressedFilesResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<CodeSet>string</CodeSet>

<directory>string</directory>

<filename>string</filename>

</BeginPutCompressedFiles>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

</BeginPutCompressedFilesResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - BeginPutFile

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/BeginPutFile"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<CodeSet>string</CodeSet>

<directory>string</directory>

<filename>string</filename>

</BeginPutFile>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

</BeginPutFileResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<CodeSet>string</CodeSet>

<directory>string</directory>

<filename>string</filename>

</BeginPutFile>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

</BeginPutFileResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - CopyDirectory

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/CopyDirectory"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<CodeSet>string</CodeSet>

<SourceDirectoryName>string</SourceDirectoryName>

<DestinationDirectoryName>string</DestinationDirectoryName>

<OverwriteDirectoryIfExists>boolean</OverwriteDirectoryIfExists>

</CopyDirectory>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<CopyDirectoryResult>boolean</CopyDirectoryResult>

</CopyDirectoryResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<CodeSet>string</CodeSet>

<SourceDirectoryName>string</SourceDirectoryName>

<DestinationDirectoryName>string</DestinationDirectoryName>

<OverwriteDirectoryIfExists>boolean</OverwriteDirectoryIfExists>

</CopyDirectory>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<CopyDirectoryResult>boolean</CopyDirectoryResult>

</CopyDirectoryResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - CopyFile

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/CopyFile"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<CodeSet>string</CodeSet>

<SourceFileName>string</SourceFileName>

<DestinationFileName>string</DestinationFileName>

<OverwriteFileIfExists>boolean</OverwriteFileIfExists>

</CopyFile>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<CopyFileResult>boolean</CopyFileResult>

</CopyFileResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<CodeSet>string</CodeSet>

<SourceFileName>string</SourceFileName>

<DestinationFileName>string</DestinationFileName>

<OverwriteFileIfExists>boolean</OverwriteFileIfExists>

</CopyFile>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<CopyFileResult>boolean</CopyFileResult>

</CopyFileResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - CreateDirectory

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/CreateDirectory"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<CodeSet>string</CodeSet>

<BaseDirectory>string</BaseDirectory>

<NewDirectoryName>string</NewDirectoryName>

</CreateDirectory>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<CreateDirectoryResult>boolean</CreateDirectoryResult>

</CreateDirectoryResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<CodeSet>string</CodeSet>

<BaseDirectory>string</BaseDirectory>

<NewDirectoryName>string</NewDirectoryName>

</CreateDirectory>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<CreateDirectoryResult>boolean</CreateDirectoryResult>

</CreateDirectoryResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - DeleteDirectory

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/DeleteDirectory"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<CodeSet>string</CodeSet>

<Directory>string</Directory>

</DeleteDirectory>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<DeleteDirectoryResult>boolean</DeleteDirectoryResult>

</DeleteDirectoryResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<CodeSet>string</CodeSet>

<Directory>string</Directory>

</DeleteDirectory>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<DeleteDirectoryResult>boolean</DeleteDirectoryResult>

</DeleteDirectoryResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - DeleteFile

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/DeleteFile"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<CodeSet>string</CodeSet>

<directory>string</directory>

<filename>string</filename>

</DeleteFile>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<DeleteFileResult>boolean</DeleteFileResult>

</DeleteFileResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<CodeSet>string</CodeSet>

<directory>string</directory>

<filename>string</filename>

</DeleteFile>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<DeleteFileResult>boolean</DeleteFileResult>

</DeleteFileResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - DirectoryExists

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/DirectoryExists"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<CodeSet>string</CodeSet>

<DirectoryName>string</DirectoryName>

</DirectoryExists>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<DirectoryExistsResult>boolean</DirectoryExistsResult>

</DirectoryExistsResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<CodeSet>string</CodeSet>

<DirectoryName>string</DirectoryName>

</DirectoryExists>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<DirectoryExistsResult>boolean</DirectoryExistsResult>

</DirectoryExistsResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - EndGetCompressedFiles

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/EndGetCompressedFiles"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

</EndGetCompressedFiles>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<EndGetCompressedFilesResult>boolean</EndGetCompressedFilesResult>

</EndGetCompressedFilesResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

</EndGetCompressedFiles>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<EndGetCompressedFilesResult>boolean</EndGetCompressedFilesResult>

</EndGetCompressedFilesResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - EndGetFile

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/EndGetFile"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

</EndGetFile>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<EndGetFileResult>boolean</EndGetFileResult>

</EndGetFileResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

</EndGetFile>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<EndGetFileResult>boolean</EndGetFileResult>

</EndGetFileResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - EndPutCompressedFiles

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/EndPutCompressedFiles"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<password>string</password>

</EndPutCompressedFiles>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<EndPutCompressedFilesResult>boolean</EndPutCompressedFilesResult>

</EndPutCompressedFilesResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<password>string</password>

</EndPutCompressedFiles>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<EndPutCompressedFilesResult>boolean</EndPutCompressedFilesResult>

</EndPutCompressedFilesResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - EndPutFile

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/EndPutFile"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

</EndPutFile>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<EndPutFileResult>boolean</EndPutFileResult>

</EndPutFileResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

</EndPutFile>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<EndPutFileResult>boolean</EndPutFileResult>

</EndPutFileResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - FileExists

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/FileExists"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<CodeSet>string</CodeSet>

<FileName>string</FileName>

</FileExists>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<FileExistsResult>boolean</FileExistsResult>

</FileExistsResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<CodeSet>string</CodeSet>

<FileName>string</FileName>

</FileExists>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<FileExistsResult>boolean</FileExistsResult>

</FileExistsResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - GetCompressedFiles

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/GetCompressedFiles"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

</GetCompressedFiles>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<GetCompressedFilesResult>base64Binary</GetCompressedFilesResult>

</GetCompressedFilesResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

</GetCompressedFiles>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<GetCompressedFilesResult>base64Binary</GetCompressedFilesResult>

</GetCompressedFilesResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - GetDirectoryInformation

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/GetDirectoryInformation"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<CodeSet>string</CodeSet>

<Directory>string</Directory>

</GetDirectoryInformation>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<Name>string</Name>

<CreatedOn>dateTime</CreatedOn>

<ModifiedOn>dateTime</ModifiedOn>

<Files>

<Name>string</Name>

<CreatedOn>dateTime</CreatedOn>

<ModifiedOn>dateTime</ModifiedOn>

</FileInformation>

<Name>string</Name>

<CreatedOn>dateTime</CreatedOn>

<ModifiedOn>dateTime</ModifiedOn>

</FileInformation>

</Files>

<Name>string</Name>

<CreatedOn>dateTime</CreatedOn>

<ModifiedOn>dateTime</ModifiedOn>

</DirectoryInformation>

<Name>string</Name>

<CreatedOn>dateTime</CreatedOn>

<ModifiedOn>dateTime</ModifiedOn>

</DirectoryInformation>

</Directories>

</GetDirectoryInformationResult>

</GetDirectoryInformationResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<CodeSet>string</CodeSet>

<Directory>string</Directory>

</GetDirectoryInformation>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<Name>string</Name>

<CreatedOn>dateTime</CreatedOn>

<ModifiedOn>dateTime</ModifiedOn>

<Files>

<Name>string</Name>

<CreatedOn>dateTime</CreatedOn>

<ModifiedOn>dateTime</ModifiedOn>

</FileInformation>

<Name>string</Name>

<CreatedOn>dateTime</CreatedOn>

<ModifiedOn>dateTime</ModifiedOn>

</FileInformation>

</Files>

<Name>string</Name>

<CreatedOn>dateTime</CreatedOn>

<ModifiedOn>dateTime</ModifiedOn>

</DirectoryInformation>

<Name>string</Name>

<CreatedOn>dateTime</CreatedOn>

<ModifiedOn>dateTime</ModifiedOn>

</DirectoryInformation>

</Directories>

</GetDirectoryInformationResult>

</GetDirectoryInformationResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - GetDirectorySize

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/GetDirectorySize"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<CodeSet>string</CodeSet>

<Directory>string</Directory>

</GetDirectorySize>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

</GetDirectorySizeResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<CodeSet>string</CodeSet>

<Directory>string</Directory>

</GetDirectorySize>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

</GetDirectorySizeResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - GetFile

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/GetFile"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<CodeSet>string</CodeSet>

<directory>string</directory>

<filename>string</filename>

</GetFile>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<GetFileResult>base64Binary</GetFileResult>

</GetFileResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<CodeSet>string</CodeSet>

<directory>string</directory>

<filename>string</filename>

</GetFile>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<GetFileResult>base64Binary</GetFileResult>

</GetFileResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - GetFileBlock

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/GetFileBlock"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

</GetFileBlock>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<GetFileBlockResult>base64Binary</GetFileBlockResult>

</GetFileBlockResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

</GetFileBlock>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<GetFileBlockResult>base64Binary</GetFileBlockResult>

</GetFileBlockResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - GetFileDate

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/GetFileDate"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<CodeSet>string</CodeSet>

<directory>string</directory>

<filename>string</filename>

</GetFileDate>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<GetFileDateResult>dateTime</GetFileDateResult>

</GetFileDateResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<CodeSet>string</CodeSet>

<directory>string</directory>

<filename>string</filename>

</GetFileDate>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<GetFileDateResult>dateTime</GetFileDateResult>

</GetFileDateResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - GetFileInformation

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/GetFileInformation"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<CodeSet>string</CodeSet>

<Directory>string</Directory>

<FileName>string</FileName>

</GetFileInformation>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<Name>string</Name>

<CreatedOn>dateTime</CreatedOn>

<ModifiedOn>dateTime</ModifiedOn>

</GetFileInformationResult>

</GetFileInformationResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<CodeSet>string</CodeSet>

<Directory>string</Directory>

<FileName>string</FileName>

</GetFileInformation>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<Name>string</Name>

<CreatedOn>dateTime</CreatedOn>

<ModifiedOn>dateTime</ModifiedOn>

</GetFileInformationResult>

</GetFileInformationResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - GetFileSize

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/GetFileSize"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<CodeSet>string</CodeSet>

<directory>string</directory>

<filename>string</filename>

</GetFileSize>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

</GetFileSizeResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<CodeSet>string</CodeSet>

<directory>string</directory>

<filename>string</filename>

</GetFileSize>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

</GetFileSizeResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - GetMaxRequestLength

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/GetMaxRequestLength"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

</GetMaxRequestLengthResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

</GetMaxRequestLengthResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - GetZipFileSize

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/GetZipFileSize"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

</GetZipFileSize>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

</GetZipFileSizeResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

</GetZipFileSize>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

</GetZipFileSizeResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - KeepAlive

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/KeepAlive"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

</KeepAlive>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

</KeepAlive>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

</soap12:Body>

</soap12:Envelope>

Web Service Method - ListFiles

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/ListFiles"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<CodeSet>string</CodeSet>

<directory>string</directory>

</ListFiles>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<string>string</string>

</ListFilesResult>

</ListFilesResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<CodeSet>string</CodeSet>

<directory>string</directory>

</ListFiles>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<string>string</string>

</ListFilesResult>

</ListFilesResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - MoveDirectory

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/MoveDirectory"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<CodeSet>string</CodeSet>

<SourceDirectoryName>string</SourceDirectoryName>

<DestinationDirectoryName>string</DestinationDirectoryName>

<OverwriteDirectoryIfExists>boolean</OverwriteDirectoryIfExists>

</MoveDirectory>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<MoveDirectoryResult>boolean</MoveDirectoryResult>

</MoveDirectoryResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<CodeSet>string</CodeSet>

<SourceDirectoryName>string</SourceDirectoryName>

<DestinationDirectoryName>string</DestinationDirectoryName>

<OverwriteDirectoryIfExists>boolean</OverwriteDirectoryIfExists>

</MoveDirectory>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<MoveDirectoryResult>boolean</MoveDirectoryResult>

</MoveDirectoryResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - MoveFile

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/MoveFile"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<CodeSet>string</CodeSet>

<SourceFileName>string</SourceFileName>

<DestinationFileName>string</DestinationFileName>

<ReplaceFileIfExists>boolean</ReplaceFileIfExists>

</MoveFile>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<MoveFileResult>boolean</MoveFileResult>

</MoveFileResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<CodeSet>string</CodeSet>

<SourceFileName>string</SourceFileName>

<DestinationFileName>string</DestinationFileName>

<ReplaceFileIfExists>boolean</ReplaceFileIfExists>

</MoveFile>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<MoveFileResult>boolean</MoveFileResult>

</MoveFileResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - PutCompressedFiles

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/PutCompressedFiles"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<filebuffer>base64Binary</filebuffer>

</PutCompressedFiles>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<PutCompressedFilesResult>boolean</PutCompressedFilesResult>

</PutCompressedFilesResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<filebuffer>base64Binary</filebuffer>

</PutCompressedFiles>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<PutCompressedFilesResult>boolean</PutCompressedFilesResult>

</PutCompressedFilesResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - PutFile

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/PutFile"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<CodeSet>string</CodeSet>

<directory>string</directory>

<filename>string</filename>

<filebuffer>base64Binary</filebuffer>

</PutFile>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<PutFileResult>boolean</PutFileResult>

</PutFileResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<CodeSet>string</CodeSet>

<directory>string</directory>

<filename>string</filename>

<filebuffer>base64Binary</filebuffer>

</PutFile>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<PutFileResult>boolean</PutFileResult>

</PutFileResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - PutFileBlock

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/PutFileBlock"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<filebuffer>base64Binary</filebuffer>

</PutFileBlock>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<PutFileBlockResult>boolean</PutFileBlockResult>

</PutFileBlockResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<filebuffer>base64Binary</filebuffer>

</PutFileBlock>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<PutFileBlockResult>boolean</PutFileBlockResult>

</PutFileBlockResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - RenameDirectory

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/RenameDirectory"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<CodeSet>string</CodeSet>

<OriginalDirectoryName>string</OriginalDirectoryName>

<NewDirectoryName>string</NewDirectoryName>

</RenameDirectory>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<RenameDirectoryResult>boolean</RenameDirectoryResult>

</RenameDirectoryResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<CodeSet>string</CodeSet>

<OriginalDirectoryName>string</OriginalDirectoryName>

<NewDirectoryName>string</NewDirectoryName>

</RenameDirectory>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<RenameDirectoryResult>boolean</RenameDirectoryResult>

</RenameDirectoryResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - RenameFile

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/RenameFile"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<CodeSet>string</CodeSet>

<Directory>string</Directory>

<OriginalFileName>string</OriginalFileName>

<NewFileName>string</NewFileName>

</RenameFile>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<RenameFileResult>boolean</RenameFileResult>

</RenameFileResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<CodeSet>string</CodeSet>

<Directory>string</Directory>

<OriginalFileName>string</OriginalFileName>

<NewFileName>string</NewFileName>

</RenameFile>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<RenameFileResult>boolean</RenameFileResult>

</RenameFileResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Method - SearchFiles

SOAP 1.1

The following is a sample SOAP 1.1 request and response. The placeholders shown need to be replaced with actual values.

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: text/xml; charset=utf-8

Content-Length: length

SOAPAction: "http://services.simplicitycrm.com/FileManagement/IOService/SearchFiles"

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<CodeSet>string</CodeSet>

<directory>string</directory>

<searchpattern>string</searchpattern>

</SearchFiles>

</soap:Body>

</soap:Envelope>

HTTP/1.1 200 OK

Content-Type: text/xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

<soap:Body>

<string>string</string>

</SearchFilesResult>

</SearchFilesResponse>

</soap:Body>

</soap:Envelope>

SOAP 1.2

POST /filemanagement/ioservice.asmx HTTP/1.1

Host: services.simplicitycrm.com

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<CodeSet>string</CodeSet>

<directory>string</directory>

<searchpattern>string</searchpattern>

</SearchFiles>

</soap12:Body>

</soap12:Envelope>

HTTP/1.1 200 OK

Content-Type: application/soap+xml; charset=utf-8

Content-Length: length

<?xml version="1.0" encoding="utf-8"?>

<soap12:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap12="http://www.w3.org/2003/05/soap-envelope">

<soap12:Body>

<string>string</string>

</SearchFilesResult>

</SearchFilesResponse>

</soap12:Body>

</soap12:Envelope>

Web Service Setup & Configuration

WEB.CONFIG

The following is a sample of the file management service web.config file. The placeholders shown need to be replaced with actual values.

DevelopmentWebSiteRootPathIfLocalElseUncWebSiteRootPath will be formatted either “C:\inetpub\wwwroot\www.demo.simplicitycrm.com\” or “\\WebServer01\websites\www.demo.simplicitycrm.com\”.

ClientID, DevelopmentCodeSet, TestCodeSetand ProductionCodeSetwill all be supplied by Simplicity for in-house implementations.

The Impersonation section shown below should be either be supplied with a users credentials with sufficient permissions to read, write and delete from the “~\editors\config\” and “~\library\” web sites folders. If the user account the file management service is running under has sufficient permissions to perform these operations then these values can be left blank.

<?xml version="1.0"?>

</configSections>

<add keyContainerName="SAFileManagementKeys" useMachineContainer="false"

description="Uses RsaCryptoServiceProvider to encrypt and decrypt"

name="SAFileManagementUserDataProtectionConfigurationProvider"

type="System.Configuration.RsaProtectedConfigurationProvider,System.Configuration, Version=2.0.0.0,

Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a" />

</providers>

</configProtectedData>

</appSettings>

<ClassName>FileManagement.IOPathManagerCollection,FileManagement</ClassName>

<ItemClassName>FileManagement.IOPathManager,FileManagement</ItemClassName>

<Items>

<Item>

<RootPath>DevelopmentWebSiteRootPathIfLocalElseUncWebSiteRootPath</RootPath>

<AuthorisationKeyCode>ClientID</AuthorisationKeyCode>

<ClassName>FileManagement.IOCodeSetsCollection,FileManagement</ClassName>

<ItemClassName>FileManagement.CodeSet,FileManagement</ItemClassName>

<Items>

<Item>

<CodeSet>DevelopmentCodeSet</CodeSet>

</Item>

</Items>

</CodeSets>

</AccessRights>

<Domain>DomainForUserWithAppropriatePermissionsOrLeaveBlankForWebApplicationAccount</Domain>

<User>UserNameWithAppropriatePermissionsOrLeaveBlankForWebApplicationAccount</User>

<Password>PasswordForUserWithAppropriatePermissionsOrLeaveBlankForWebApplicationAccount</Password>

</Impersonation>

</Item>

<Item>

<RootPath>TestWebSiteRootPathIfLocalElseUncWebSiteRootPath</RootPath>

<AuthorisationKeyCode>ClientID</AuthorisationKeyCode>

<ClassName>FileManagement.IOCodeSetsCollection,FileManagement</ClassName>

<ItemClassName>FileManagement.CodeSet,FileManagement</ItemClassName>

<Items>

<Item>

<CodeSet>TestCodeSet</CodeSet>

</Item>

</Items>

</CodeSets>

</AccessRights>

<Domain>DomainForUserWithAppropriatePermissionsOrLeaveBlankForWebApplicationAccount</Domain>

<User>UserNameWithAppropriatePermissionsOrLeaveBlankForWebApplicationAccount</User>

<Password>PasswordForUserWithAppropriatePermissionsOrLeaveBlankForWebApplicationAccount</Password>

</Impersonation>

</Item>

<Item>

<RootPath>ProductionWebSiteRootPathIfLocalElseUncWebSiteRootPath</RootPath>

<AuthorisationKeyCode>ClientID</AuthorisationKeyCode>

<ClassName>FileManagement.IOCodeSetsCollection,FileManagement</ClassName>

<ItemClassName>FileManagement.CodeSet,FileManagement</ItemClassName>

<Items>

<Item>

<CodeSet>ProductionCodeSet</CodeSet>

</Item>

</Items>

</CodeSets>

</AccessRights>

<Domain>DomainForUserWithAppropriatePermissionsOrLeaveBlankForWebApplicationAccount</Domain>

<User>UserNameWithAppropriatePermissionsOrLeaveBlankForWebApplicationAccount</User>

<Password>PasswordForUserWithAppropriatePermissionsOrLeaveBlankForWebApplicationAccount</Password>

</Impersonation>

</Item>

</Items>

</IOService>

<system.web>

<add assembly="System.Windows.Forms, Version=2.0.0.0, Culture=neutral,

PublicKeyToken=B77A5C561934E089"/>

<add assembly="System.Data.OracleClient, Version=2.0.0.0, Culture=neutral,

PublicKeyToken=B77A5C561934E089"/>

<add assembly="System.Runtime.Serialization.Formatters.Soap, Version=2.0.0.0, Culture=neutral,

PublicKeyToken=B03F5F7F11D50A3A"/>

<add assembly="System.Design, Version=2.0.0.0, Culture=neutral,

PublicKeyToken=B03F5F7F11D50A3A"/></assemblies>

</compilation>

<pages>

</namespaces>

</pages>

</system.web>

</configuration>

File Management Implementation Workflow

SIMPLICITY DESKTOP APPLICATION ONLINE FORM PUBLISHING DATAFLOW

When an online form has been configured in Simplicity it can be published to make it publically available.

This process uses the file management service to transfer the online form configuration file created by the Simplicity desktop client to the “~\editors\” web application. This online form configuration file is a blend of user defined data from within the client database and Simplicity’s application configuration data.

These online forms create a live medium for clients to interact with their customers in real time or in a staged manner with merging and de-duping processing being defined where applicable.

SIMPLICITY DESKTOP APPLICATION CONTENT PUBLISHING TO ONLINE LIBRARY DATAFLOW

Local and network resources can be made available over the Internet and/or Intranet through Simplicity’s integrated online library.

Any local or network accessible content can be uploaded to the online library by using the Simplicity desktop application.

This process uses the file management service to transfer the online content accessible by the Simplicity desktop client to the “~\library\” web folder.

The online content is then available for use from within online forms or for use in email content or any other online medium. Online content selection through the “Customer Interaction Studio” is a very simple process through intuitive right click context menus.

File Management Web Service API

File Management Service Whitepaper

Overview

Accessibility Diagrams

FILE MANAGEMENT SERVICE HOSTED AT SIMPLICITY

Web Service Method Definitions

Web Service Method - BeginGetCompressedFiles

Web Service Method - BeginGetFile

Web Service Method - BeginPutCompressedFiles

Web Service Method - BeginPutFile

Web Service Method - CopyDirectory

Web Service Method - CopyFile

Web Service Method - CreateDirectory

Web Service Method - DeleteDirectory

Web Service Method - DeleteFile

Web Service Method - DirectoryExists

Web Service Method - EndGetCompressedFiles

Web Service Method - EndGetFile

Web Service Method - EndPutCompressedFiles

Web Service Method - EndPutFile

Web Service Method - FileExists

Web Service Method - GetCompressedFiles

Web Service Method - GetDirectoryInformation

Web Service Method - GetDirectorySize

Web Service Method - GetFile

Web Service Method - GetFileBlock

Web Service Method - GetFileDate

Web Service Method - GetFileInformation

Web Service Method - GetFileSize

Web Service Method - GetMaxRequestLength

Web Service Method - GetZipFileSize

Web Service Method - KeepAlive

Web Service Method - ListFiles

Web Service Method - MoveDirectory

Web Service Method - MoveFile

Web Service Method - PutCompressedFiles

Web Service Method - PutFile

Web Service Method - PutFileBlock

Web Service Method - RenameDirectory

Web Service Method - RenameFile

Web Service Method - SearchFiles

Web Service Setup & Configuration

File Management Implementation Workflow
